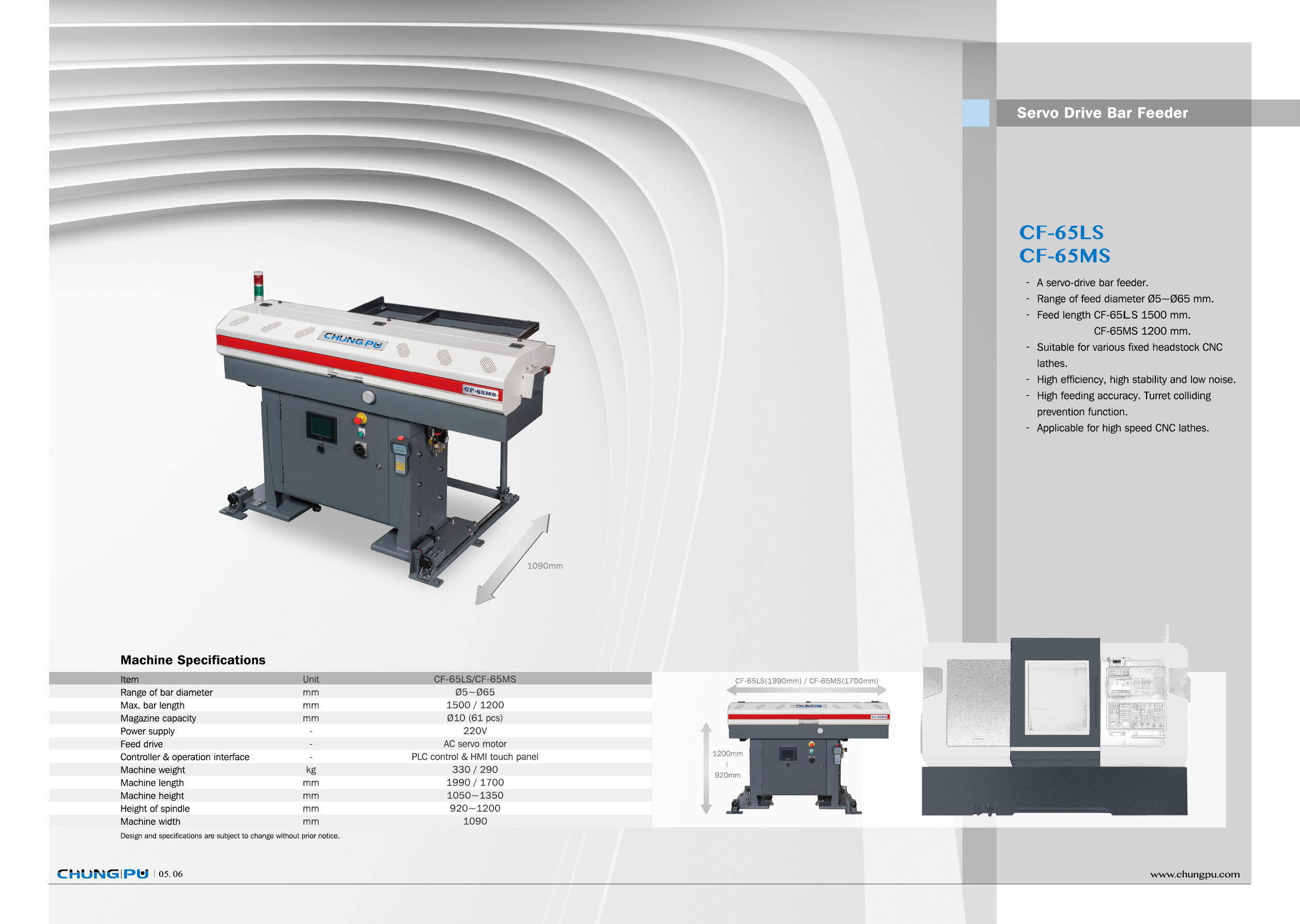

Automatic Bar Feeder

Automatic Bar Feeder

  • The AC servo drive provides accurate and quiet action to prevent the bar from crashing the turret.
  • Suitable for any sliding head style and fixed head style CNC lathes.
  • Color large size man-machine interface, touch panel operation, easy to operate.
  • Polymer wear-resistant hose effectively reduces vibration noise.
  • One-piece steel frame, solid body.
  • Free adjustment of the fixture, material changing without adjustment of the fixture.

SPECIFICATION

Bar diameter⌀5~65 mm
Magazine capacity61 pcs (10 mm)
Power supply220V
Feed driveAC servo motor
Controller & Screen Digital InterfacePLC control & HMI touch panel
Weight330 kg/290 kg
Lengtd1,990 mm/1,700 mm
Height1,050~1,350mm
Maximum bar lengtd1,500 mm/1,200 mm
Deptd900~1,200 mm
