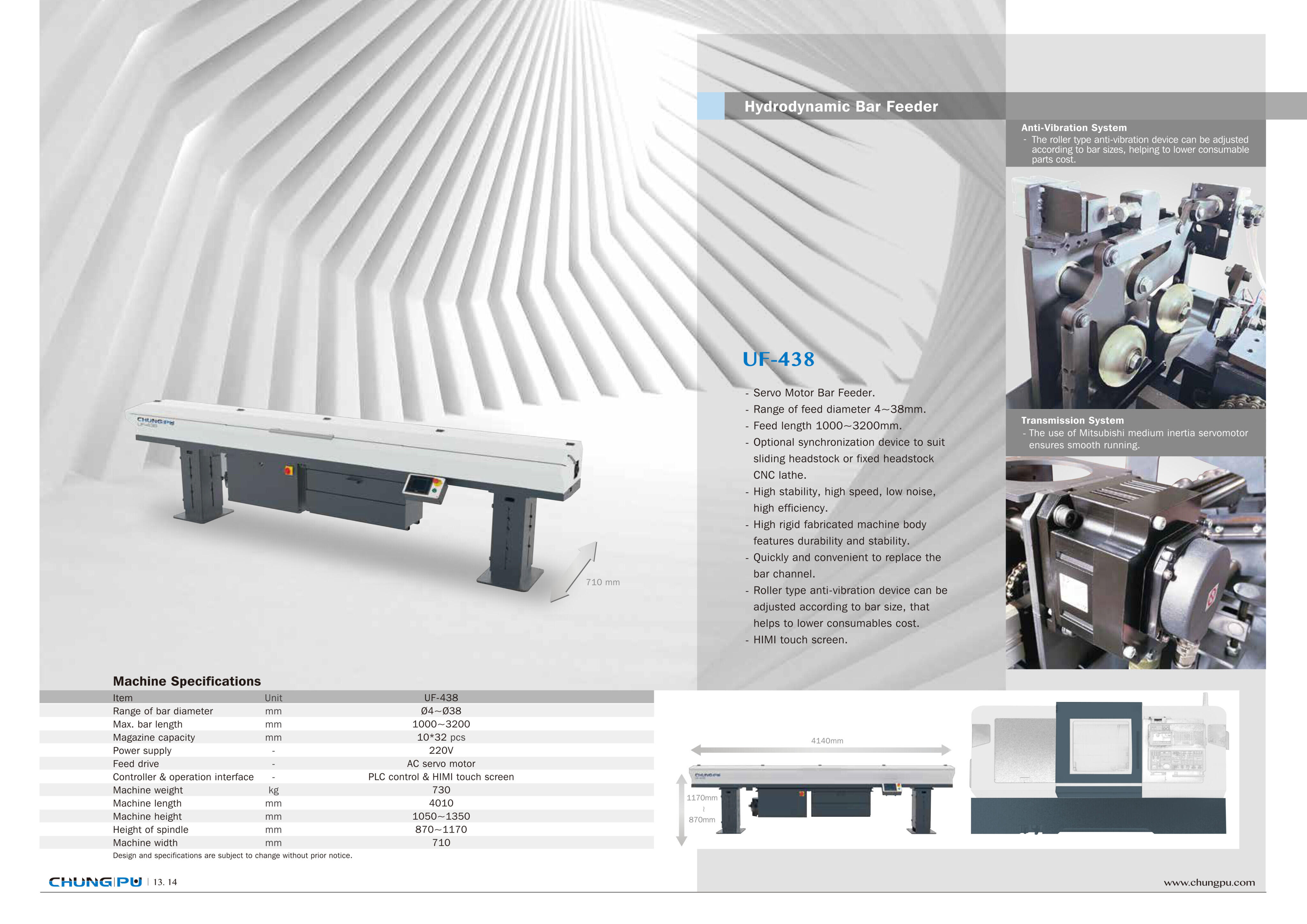

Automatic bar feeder
Automatic bar feeder
- AC Servo Motor Bar Feeder.
- Range of feed diameter ⌀4~38 mm.
- Feed length 1,000~3,200 mm.
- Optional synchronization device to suit sliding headstock style or fixed headstock style CNC lathe.
- High stability, high speed, low noise, high efficiency.
- High rigid fabricated machine body features durability and stability.
- Quickly and conveniently replace the bar channel.
- Roller-type anti-vibration devices can be adjusted according to bar size, which helps to lower consumables costs.
- HIMI touch screen.
SPECIFICATION
| Bar diameter | ⌀4~38 mm |
| Magazine capacity | 32 pcs (10 mm) |
| Power supply | 220V |
| Feed drive | AC servo motor |
| Controller & Screen Digital Interface | PLC control & HMI touch panel |
| Weight | 730 kg |
| Lengtd | 4,010 mm |
| Height | 1,050~1,350 mm |
| Widtd | 710 mm |
| Height of spindle | 870~1,170 mm |
| Maximum bar lengtd | 1,000~3,200 mm |
