Automatic bar feeder

Automatic bar feeder

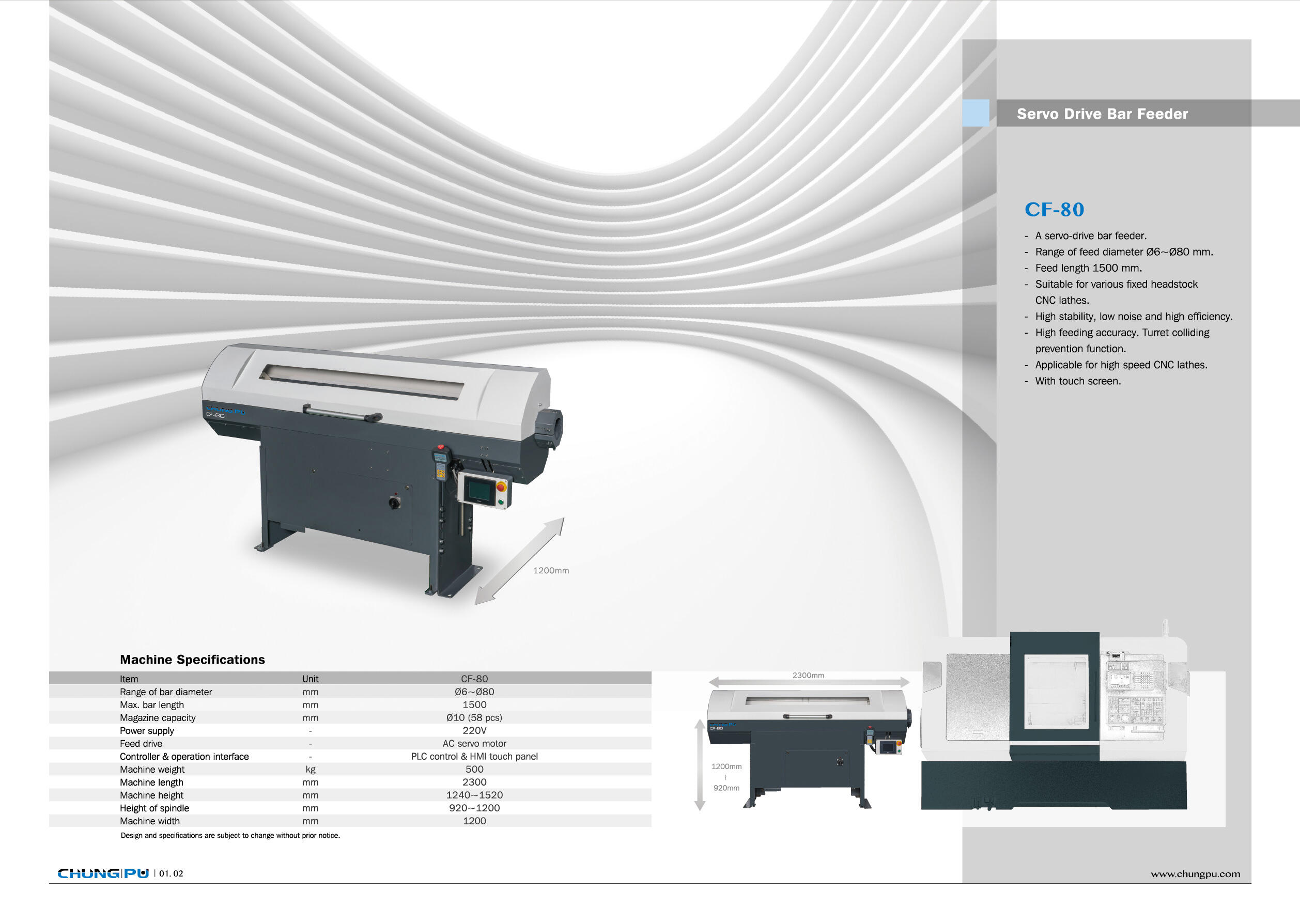

CF-80 English Catalog
  • Servo drives provide precise and quiet operation, preventing bar collision with the turret.
  • HMI provides convenient parameter setting.
  • Short remnants reduce material waste.
  • Suitable for round, tubular, and hexagonal bar stock.
  • Suitable for any various fixed headstock CNC lathe.
Φ6~80mm Servo Drive Automatic Bar Feeder: CF-80 The front view of the Φ6~80mm servo drive automatic bar feeder: CF-80
Φ6~80mm Servo Drive Automatic Bar Feeder: CF-80 The front view of the Φ6~80mm servo drive automatic bar feeder: CF-80

SPECIFICATION

Bar diameter6mm~80mm
TypeFixed
Magazine capacity58 Bar(10mm)
Power supply220V
Feed driveAC servo motor
Controller & Screen Digital InterfacePLC control & HMI touch panel
Weight490 Kg
LengtdLength : 2300mm
Height1240mm-1520mm
Height of spindle920mm-1200mm
Deptd1200mm
