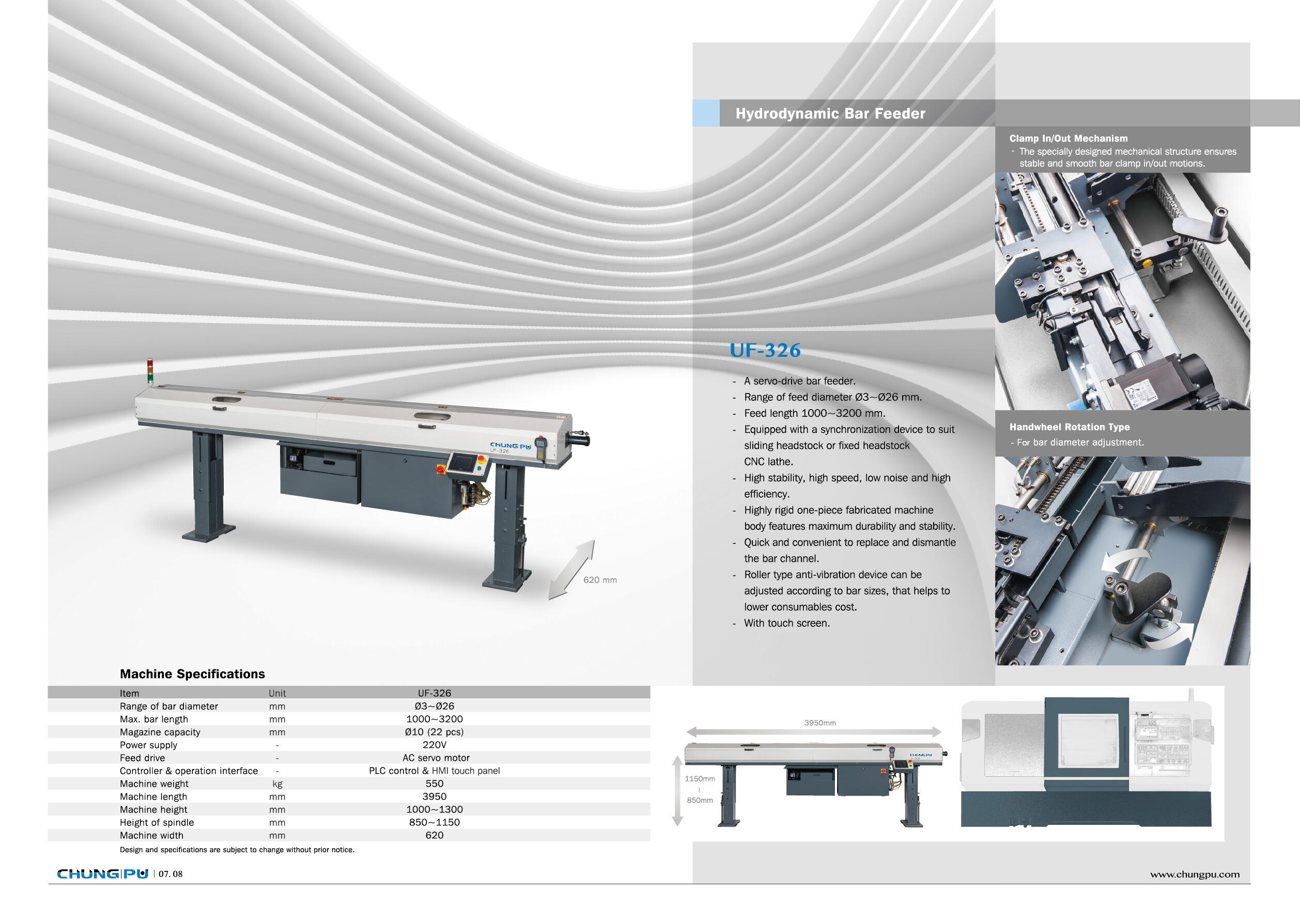

Automatic bar feeder
Automatic bar feeder
- The servo drive provides accurate and quiet action to prevent the bar from crashing the turret.
- Color large-size man-machine interface, touch operation, and ease of operation.
- Polymer wear-resistant hose effectively reduces the vibration noise.
- One-piece steel frame, solid body.
- Free adjustment of the fixture, material changing without adjustment of the fixture.
- Suitable for any sliding head and fixed head CNC lathes.
SPECIFICATION
| Bar diameter | 3mm~26 mm |
| Type | Sliding |
| Bar length | 1,000~3,200 mm |
| Magazine capacity | 22 Bar(10mm) |
| Power supply | 220V |
| Feed drive | AC servo motor |
| Controller & Screen Digital Interface | PLC Control & Chinese Keyboard Display |
| Weight | 550 Kg |
| Length | 3,800 mm |
| Height | 1,000 mm~1,300 mm |
| Width | 620 mm |
| Height of spindle | 850 mm~1,150 mm |
