Automatic bar feeder
Automatic bar feeder
- The servo drive provides accurate and quiet action to prevent the bar from crashing the turret.
- Color large-size man-machine interface, touch panel operation, and convenience to operate.
- Polymer wear-resistant hose effectively reduces the vibration noise.
- Material scale is easy and convenient to adjust the material size.
- One-piece steel frame, solid body.
- Free adjustment of the fixture, material changing without adjustment of the fixture.
- Suitable for any sliding head and fixed head CNC lathes.
- Made in Taiwan.

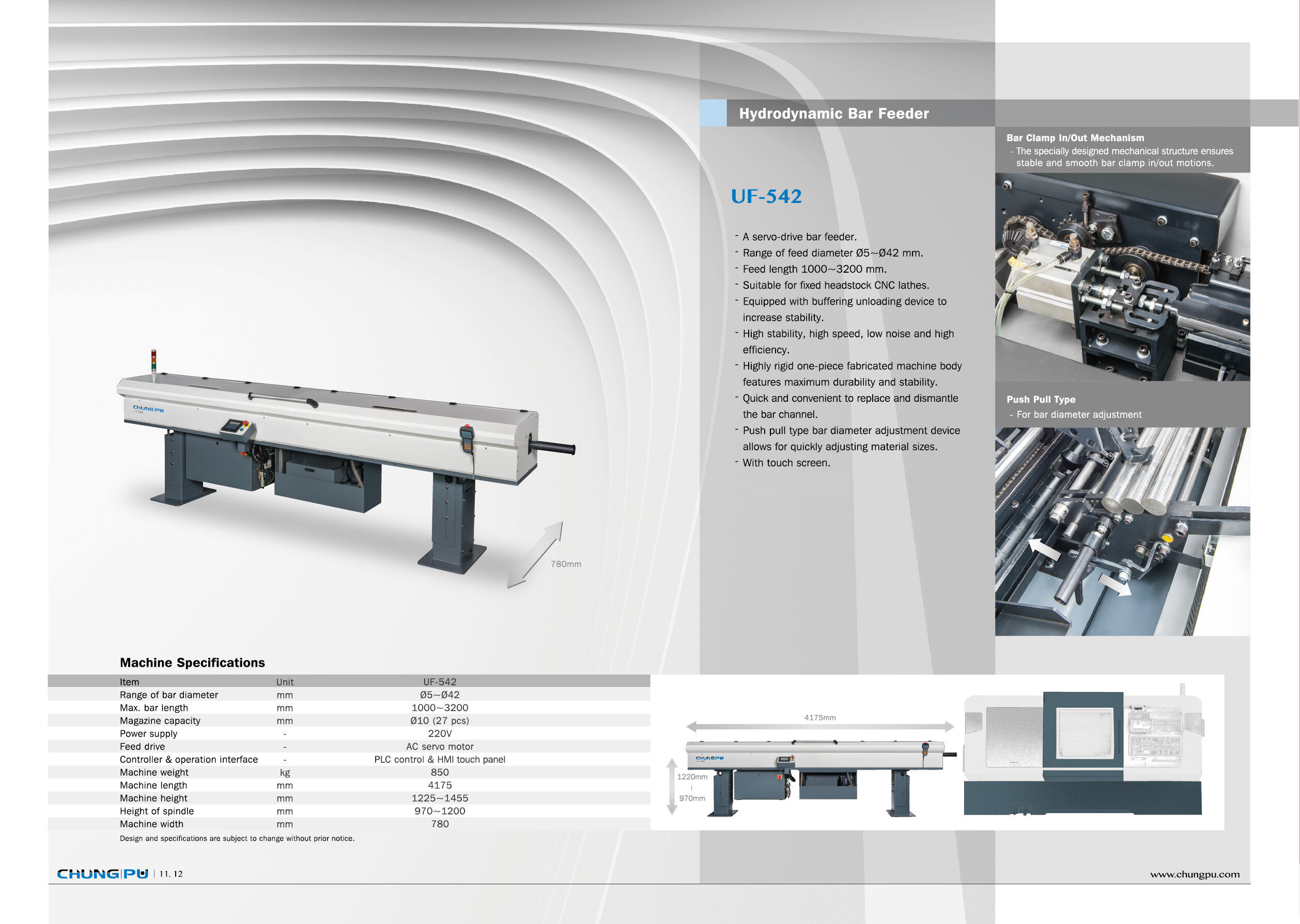

SPECIFICATION
| Bar diameter | 5 mm~42 mm |
| Type | Sliding |
| Bar length | 1,000~3,200 mm |
| Magazine capacity | 27 Bar(10 mm) |
| Power supply | 220V |
| Feed drive | AC servo motor |
| Controller & Screen Digital Interface | PLC Control & Chinese Keyboard Display |
| Weight | 850 Kg |
| Length | 4,175 mm |
| Height | 1,225 mm~1,455 mm |
| Width | 780 mm |
| Height of spindle | 970 mm~1,200 mm |
